Disc Ferrite Magnet
Permanent ferrite tiles are permanent magnets with SrO.nFe2O3 as the main structure, with magnetic properties up to FB6, FB9 and FB12 (TDK company grade) series grades, with high magnetic performance to price ratio, chemical stability, good resistance to high and low temperatures, etc., which are widely used in the fields of automotive permanent magnet motors, energy-saving home appliance motors, industrial control motors, power tools, magnetic drives and sensors.
Description
Product Description
Product Name: | Disc Ferrite Magnet |
Product Materials: | NdFeB Magnets + Steel plate (Q235) |
Grade of Magnets: | N35-N52 |
Size of the products: | D12mm D16mm D20mm D22mm D25mm D32mm D36mm etc |

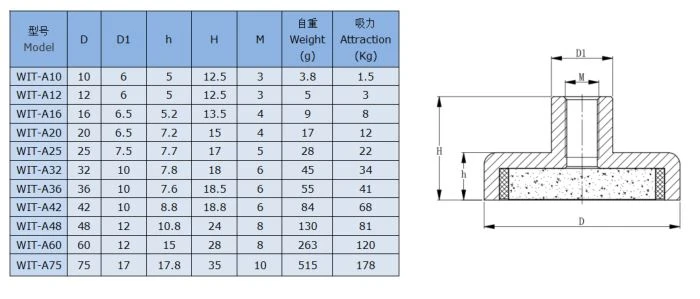

Size of magnets: | see below drawing |
Working Temp.: | <=80ºC |
Magnetic direction: | Magnets are sunken in to a steel plate. The north pole is on the center of the magnetic face and the south pole is on the outer edge around it. |
Vertical pull force: | From 5kg to 500kg |
Testing method: | The value of the magnetic pull force has some thing to do with the thickness of the steel plate and pull speed. Our testing value is based on the thickness of the steel plate =10mm, and pull speed = 80mm/min.) Thus, different application will have different result. |
Application: | Applications include Point of Sale, window fressing, door/cupboard and gate clamps, false ceiling clamps, signs and banners, torque limited seals, jigs and fixtures, lighting holders, marketing and exhibition displays, retrieval magnets, industrial fixings etc. |
Pot magnet super strong neodymium pot magnets
Strong, compact and flexible. Those are the quality features of our pot magnets that allow you to use them at work or at home as well as in industry and craft, in schools and universities or for hobby and leisure. We can offer different styles, so you can select the magnet system that is right for your needs.
Product features
1. Strong neodymium magnet/permanent magnet/NdFeb Magnet/Rare earth magnets
2. Increased adhesive force through embedding in a steel pot
3. Flat design
4. Versatile use

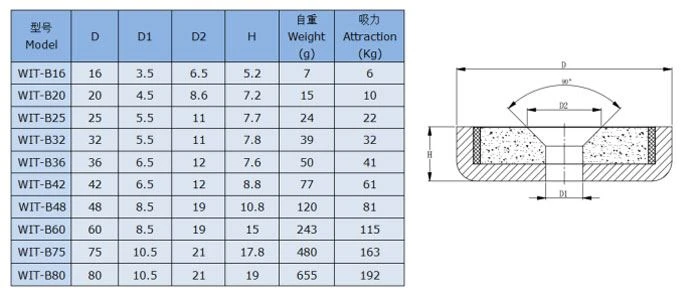

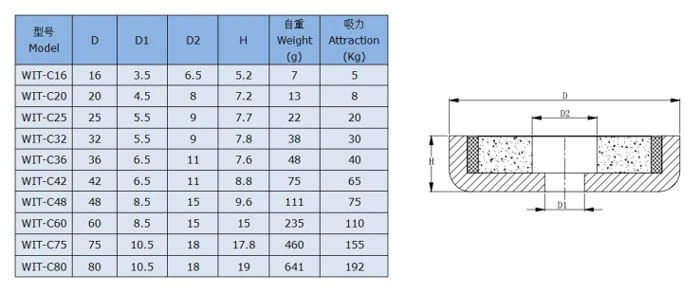

Specification
Purchasing guide
1. The product shape and dimensions;
2. The product performance parameters(Such as tables, magnetic, heavy suction, thread size, etc);
3. The parts of the material and coating;
4. The gap needs to be filled and whether the color of the filler(Such as epoxy, plastic ring, aluminumring, copper ring, etc);
5. The use of temperature;
6. The need to provide parts.
